DS 14537-SincoTech Multifunctional Racing Dashboard DO907 Sensor kit Rally Car Race Dashboard Digital Display Gauge Meter Full Sensor Kit

The dashboard Features a 2.5 inch OLED sreen,RPM reach to 11000 max,black backlight,harness wiring and sensor kit,universal to all 12v vehicles(1-8 engine cylinders).

Function Display
1 .Engine RPM
2. Speed
3 .The ODO
4 .The TRIP
5 .Water Temp
6 .Air/Fuel Ratio
7 .EXT Temp
8. Oil Pressure
9 .Oil Temp
10.Turbo
11.Time
12.0-100KM/H,0-200KM/H Testing Mode

Parts List
(1) Display
(2) Display Stand
(3) Control Key
(4) Oil Pressure Sensor
(5) Boost Sensor
(6) Water/Oil Temp Sensor
(7) Boost Pipe
(8) EXT.Temp Sensor
(9) Data Processing Unit
(10) Connection Wire

Features
1.High brightness clear OLDE display screen
2.For types of display interfaces complete content
3.Man-machine interaction ,two-way communication
4.Acceleration test function:0-100km/h 0-200km/h
5.Automatic brightness adjustment / Manual brightness adjustment
6.8 LED lights set on the top display of rotating speed and set alarm
7.Various built-in instruments

Descriptions:

Description for interfaces
There’s 4 functional interfaces can be selected.

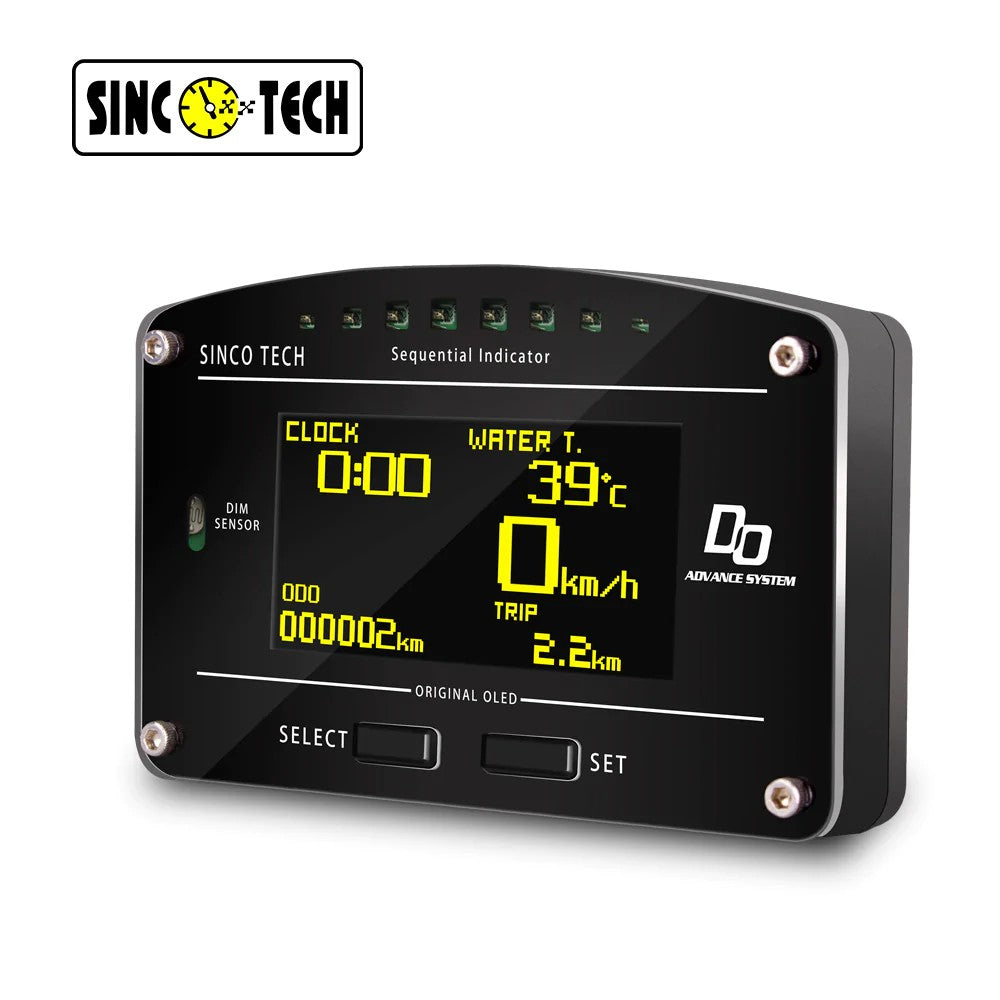

1.The first interface display:
Clock,Water Temperature ,ODO,TRIP
2.The second interface display:
Tacho ,Air Fuel Ratio ,EXT Temperature, Speed ,Oil Pressure .
3.The third interface display :
Real-time Oil Temperature ,Alarmed Oil Temperature ;Real-time Water Temperature ,Alarmed Water Temperature ;Turbo ;Speed
4.The fourth interface:
Racing mode

Description for display setup
The display setup include:
1.Revbar range setting
2.Revbvar max scale setting
3.Seqind pattern setting
4.Seqind step setting
5.Display warning buzzer setting

Description for system setup
The system setup include :
1.Unit setting :km/h*kPa*℃  to mph*Psi*°F
2.Speed pulses setting
3.Engine cylinders setting
4.Dimmer setting
5.Clock setting

Description for warning setup
Warning setup include :
1.Tacho
2.Oil pressure
3.Oil temp
4.Water temp
5.Air fuel
6.Ext .temp
7.Turbo

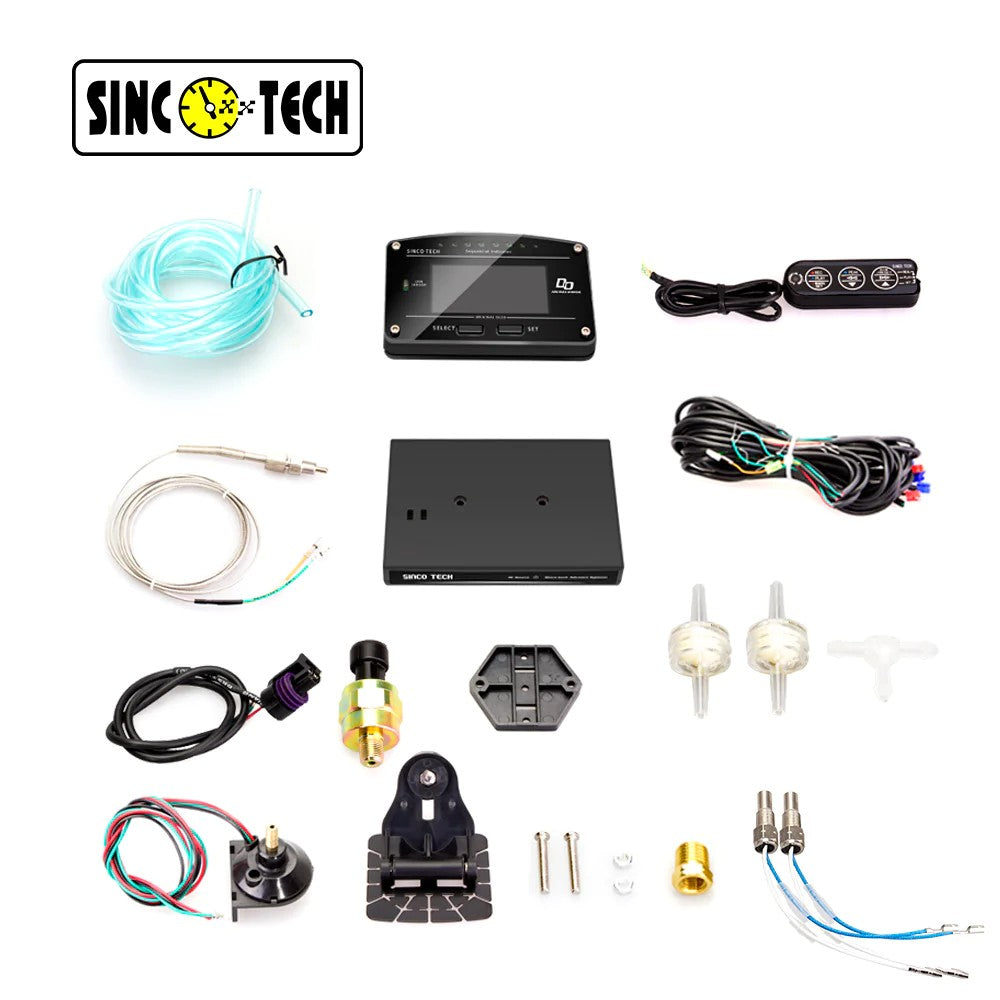

Parts List
1. the Monitor(2.5 inch )
2. control key
3. Data Processing Unit(DPU)
4. Sensors,include Oil Temp,Water Temp,EGT,Oil Press,Boost .
5. connect wirings.
