DS 14954-SincoTech Narrow Band 7-Color Multifunctional Black Racing Dashboard DO926NB

Brand  SINCO TECH

Model DO926

Display  Digital

Size  6.5 inch

Language  English

Operating Voltage  9V-16V

Application  All 12v Vehicle

Type : Narrow Band

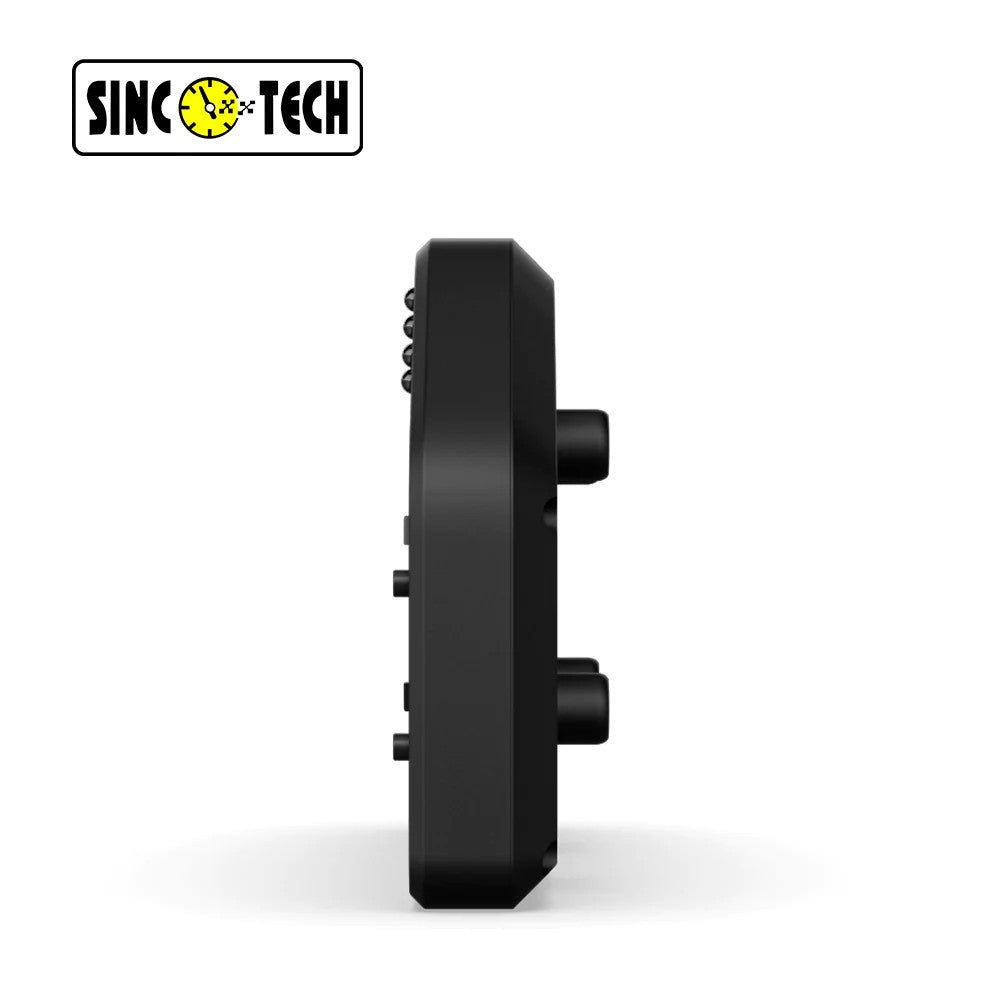

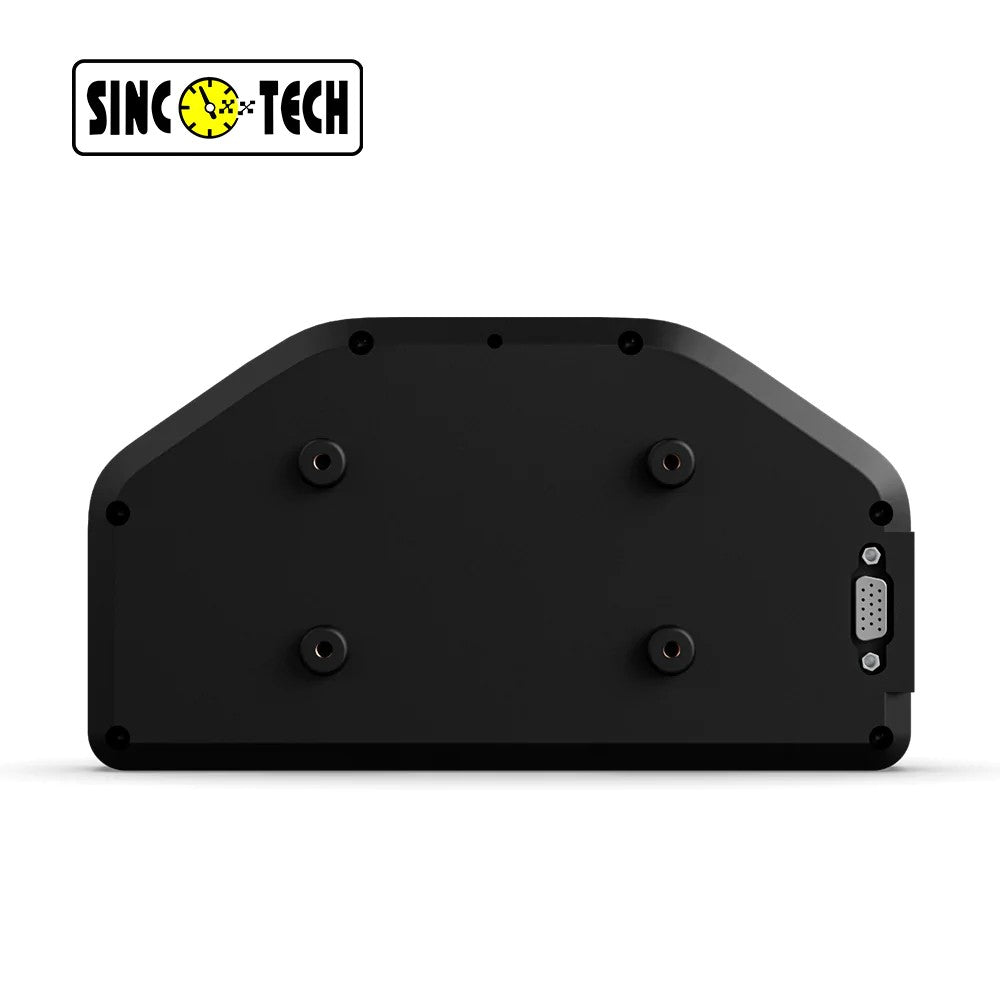

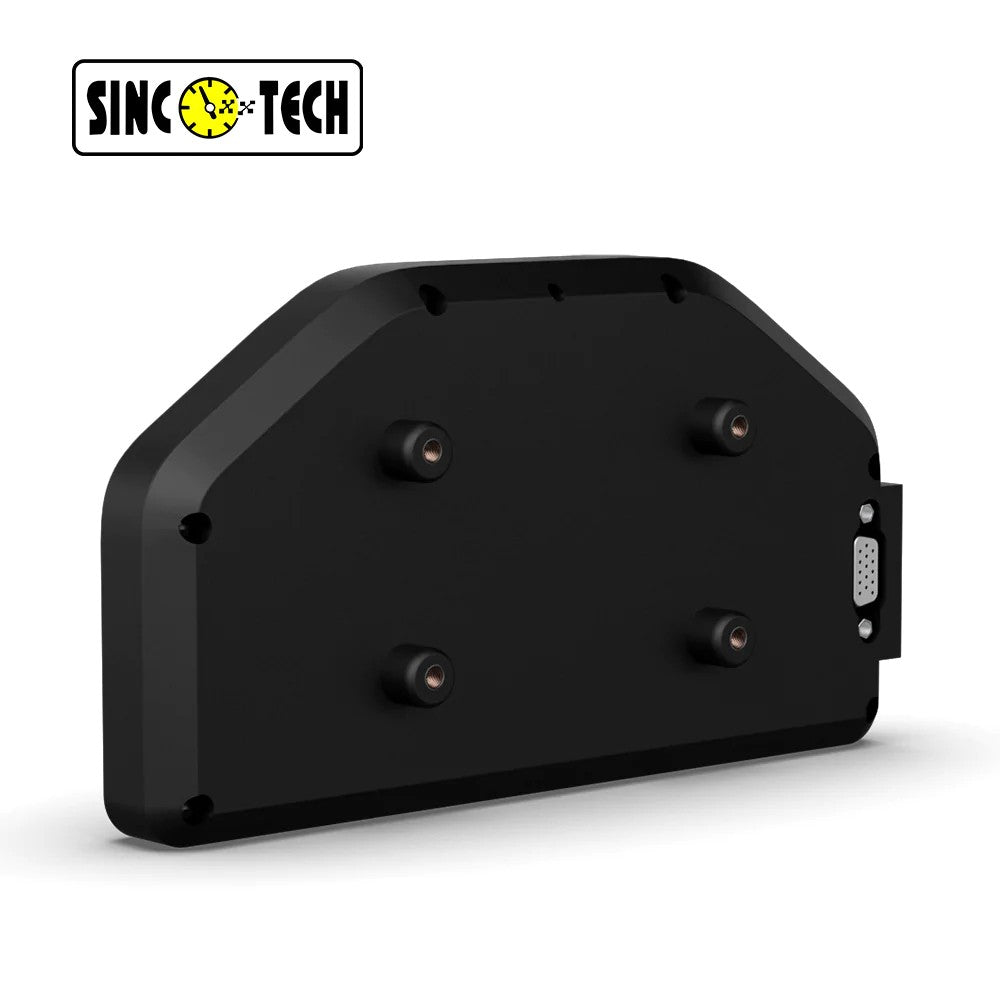

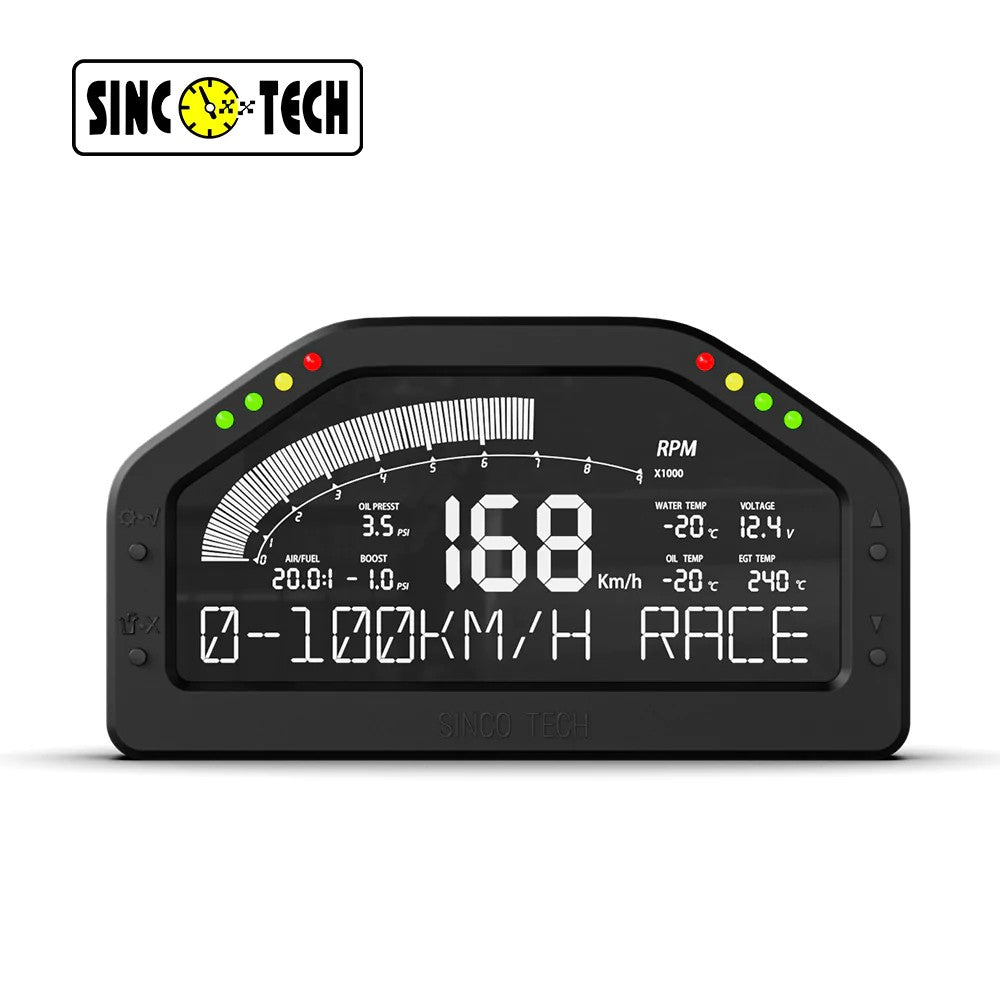

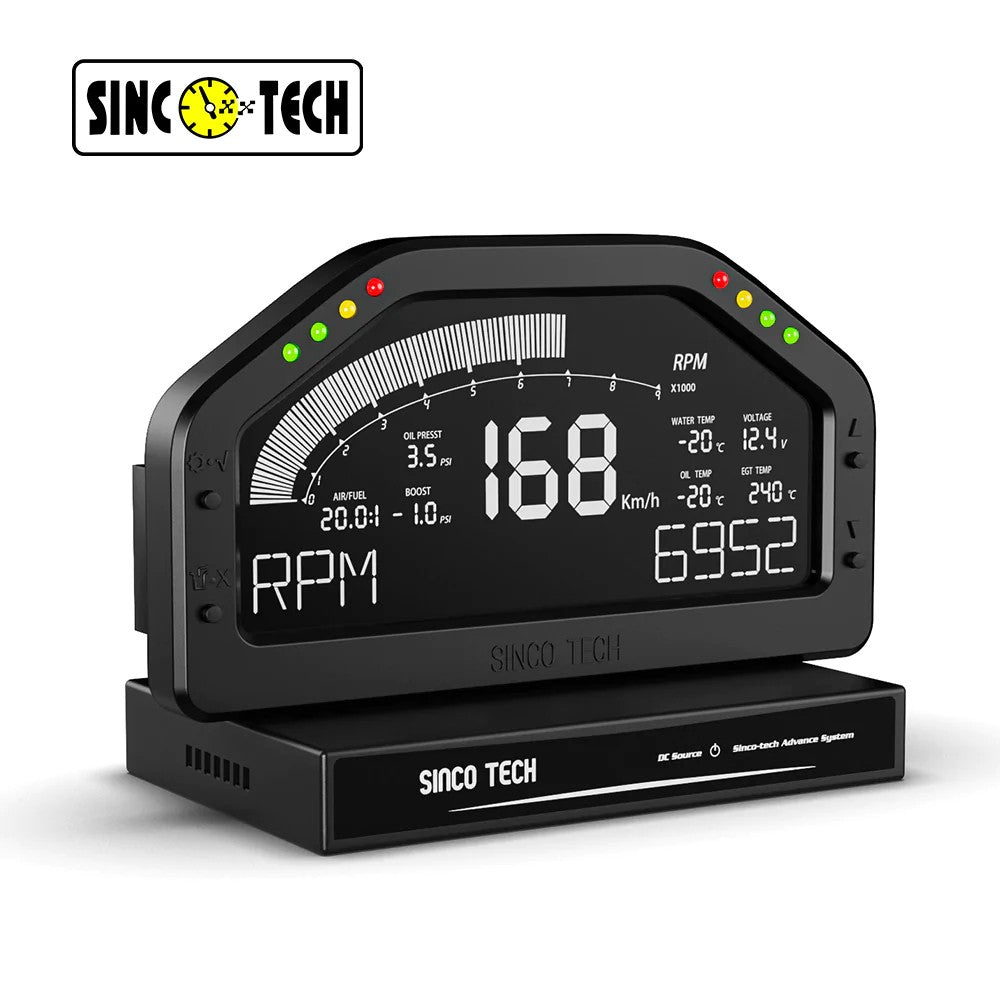

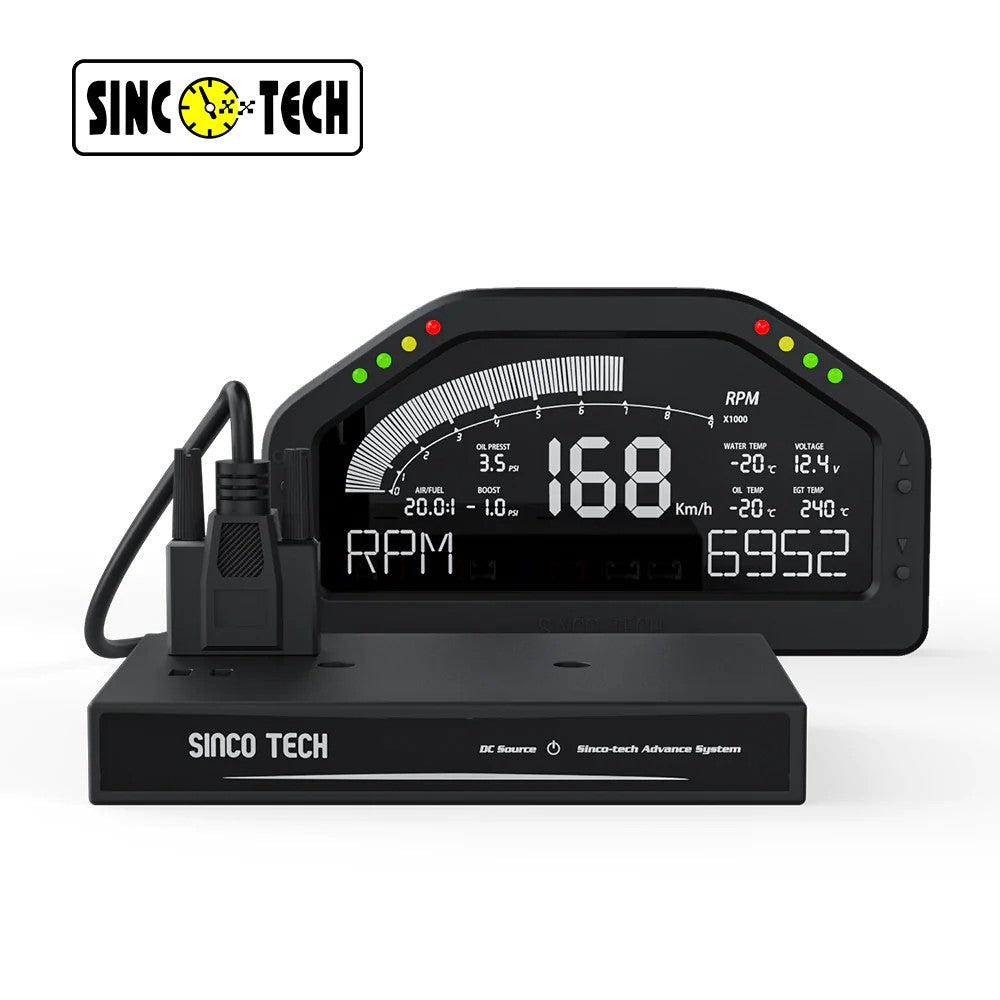

DO926 Multifunctional race dashboard features a 6.5 inch low consumption LCD screen with high precise sensors kit . Chinese/English available, low consumption LCD screen with black backlight with 7 colors display optional, universal to all 12V vehicles( 1-8 engine cylinders), RPM reach to 9000 max. Four speed alarm LED lights and two button keys are designed on either side of display shell.

Functions Display

1. RPM

2.Speed

3.Oil Pressure

4.Oil Temp.

5.Water Temp

6.Boost

7.Air Fuel Ratio

8.EGT

9.Voltage

10.ODO and Trip

11.0-100KM/H Testing Mode

Alarm Setting
SPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, VOLT

Dimension
186mm*102mm*22mm

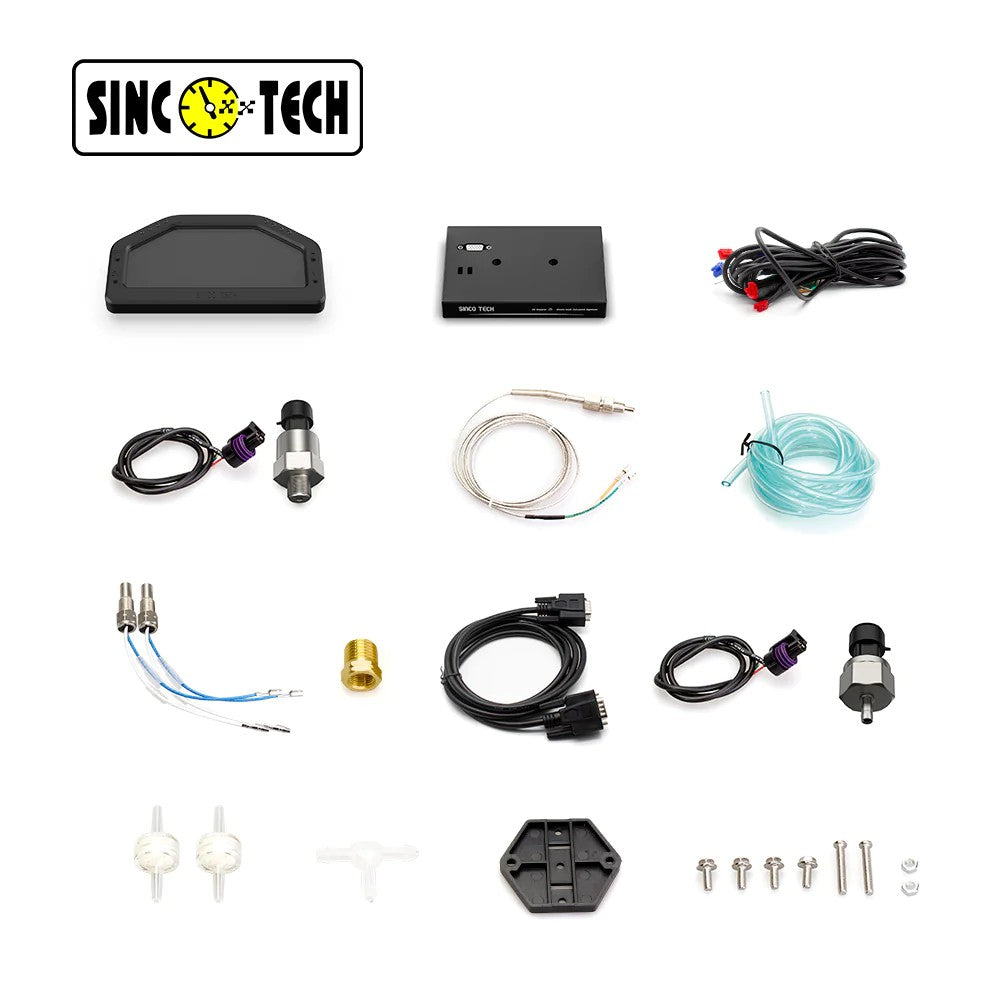

Parts List
1. Display monitor
2. Data processing unit (DPU)
3.Sensors and wiring.
4. Instructions manual

Features

■Low consumption LCD screen

■8 LED lights with sequential indicator function

■With a new advanced system

■Harness wiring

■ODO and Trip display

■waterproof

■Time clock function

■Backlight Dimmer adjusted by manual

■7 Color adjustable ,11 backlight modes optional
