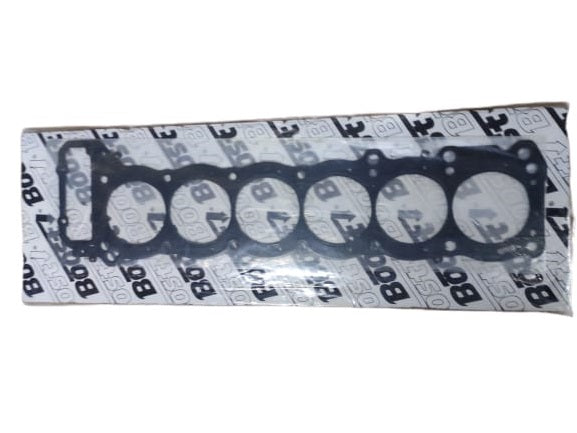

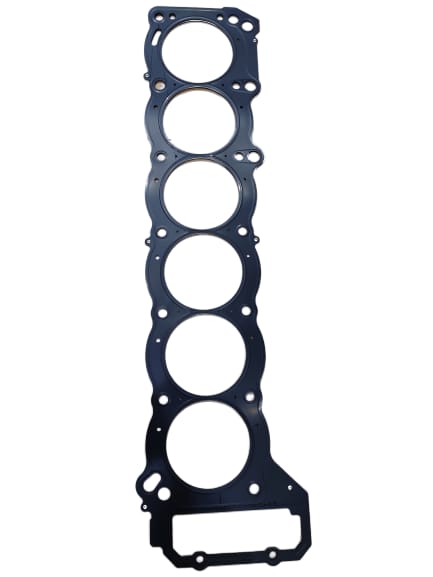

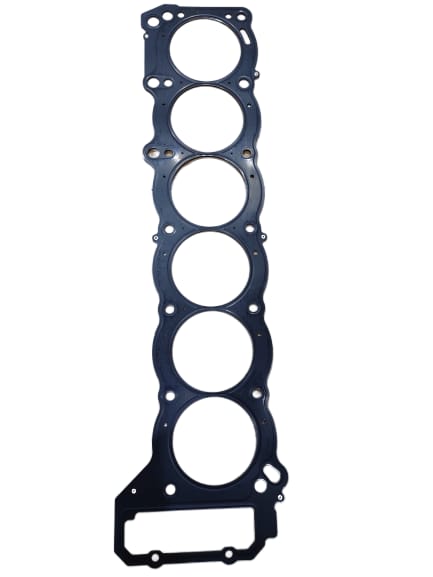

DS 360014-BOOST HEAD GASKET TOYOTA 1FZ 1.6MM

Boost Gaskets are a new line of premium high performance  stainless steel head gaskets for both Domestic and Sport Compact applications.The Boost  Gaskets are manufactured to a higher standard than typical  head gaskets.Boost  gaskets are manufactured from layers of stainless steel that are taken from raw format, cut into sheets, and laser cut into a preliminary shape. Each layer is then put through a multi stage embossing process which allows for a slow forming and smooth radii embossment for maximum sealing that reduces any high stress points and the chance of cracking. This method also eliminates the corrosion issues that pre-coated gaskets are prone to from the exposed areas after they are cut. Those corrosion areas can create hot spots where detonation can occur.The layers are then put through a heat treatment process which normalizes the layers into that embossed form. This allows a type of memory when the gasket is heat cycling. So even when the gasket is removed it will still have a high embossment strength. The layers are then put through a multi stage coating process of Boost 's proprietary design which permits maximum sealing on various deck surfaces.

Lastly the gaskets layers are assembled into their final state.The out layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The vition coating is heat resistant to 2500C or 4820F.In addition every layer of our multi-Layered steel gasket is individually cut and formed to optimize performance.
